Overview¶

What is Amazon EC2?¶

Amazon Elastic Compute Cloud (EC2) is a web service that provides resizable compute capacity in the cloud. EC2 allows you to launch virtual servers (instances) on-demand, configure security and networking, and manage storage.

Key Features: - Virtual Servers: Launch instances with various operating systems (Linux, Windows, macOS). - Instance Types: Choose from different compute, memory, storage, and networking capacities. - Scalability: Quickly scale instances up or down based on demand. - Pay-as-you-go: Only pay for the compute time you use. - Security: Integrated with AWS security services like IAM, Security Groups, and VPC.

Common Use Cases: - Web servers and applications - Development and testing environments - Database hosting - High-performance computing - Container hosting

In CA101, we'll use EC2 instances to build and test our cloud infrastructure, including bastion hosts and web servers.

Create `tmp-projectx-jumpbox`¶

Navigate to EC2 AWS Service.

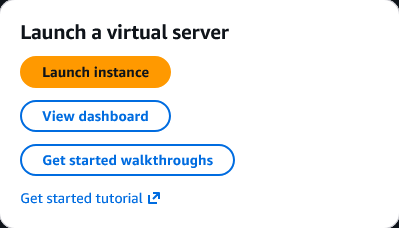

Select "Launch instance".

Configure the instance:

Name: tmp-projectx-jumpbox

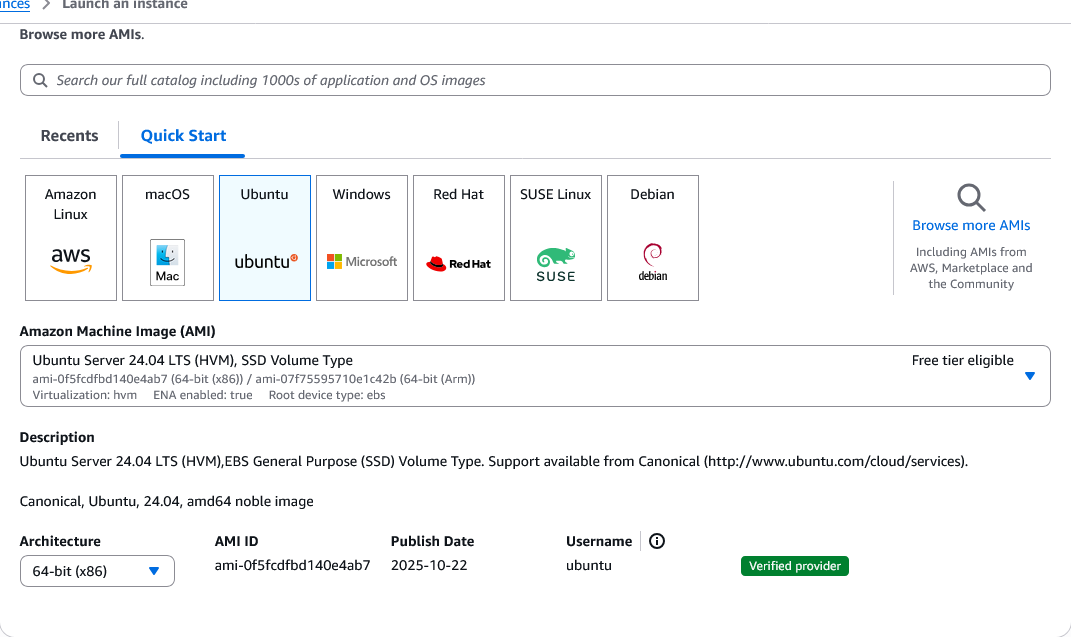

AMI: Ubuntu Server 24.04 LTS

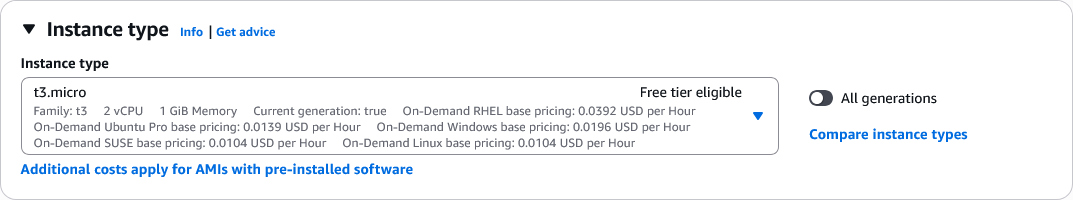

Instance type: t3.micro

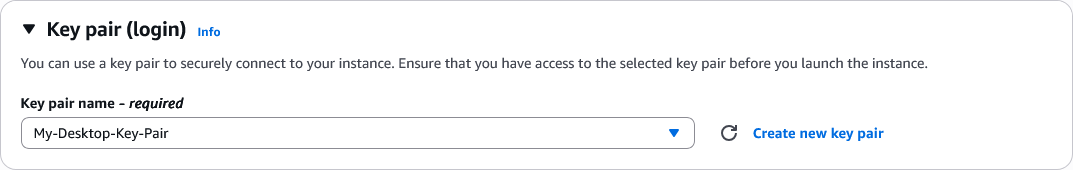

Key pair: Select My-Desktop-Key-Pair

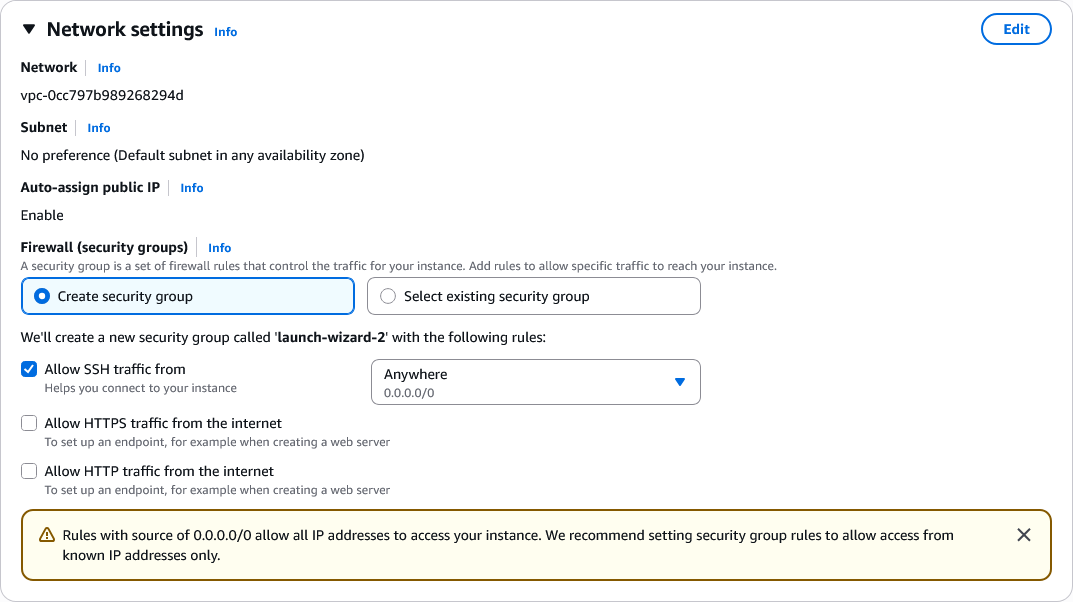

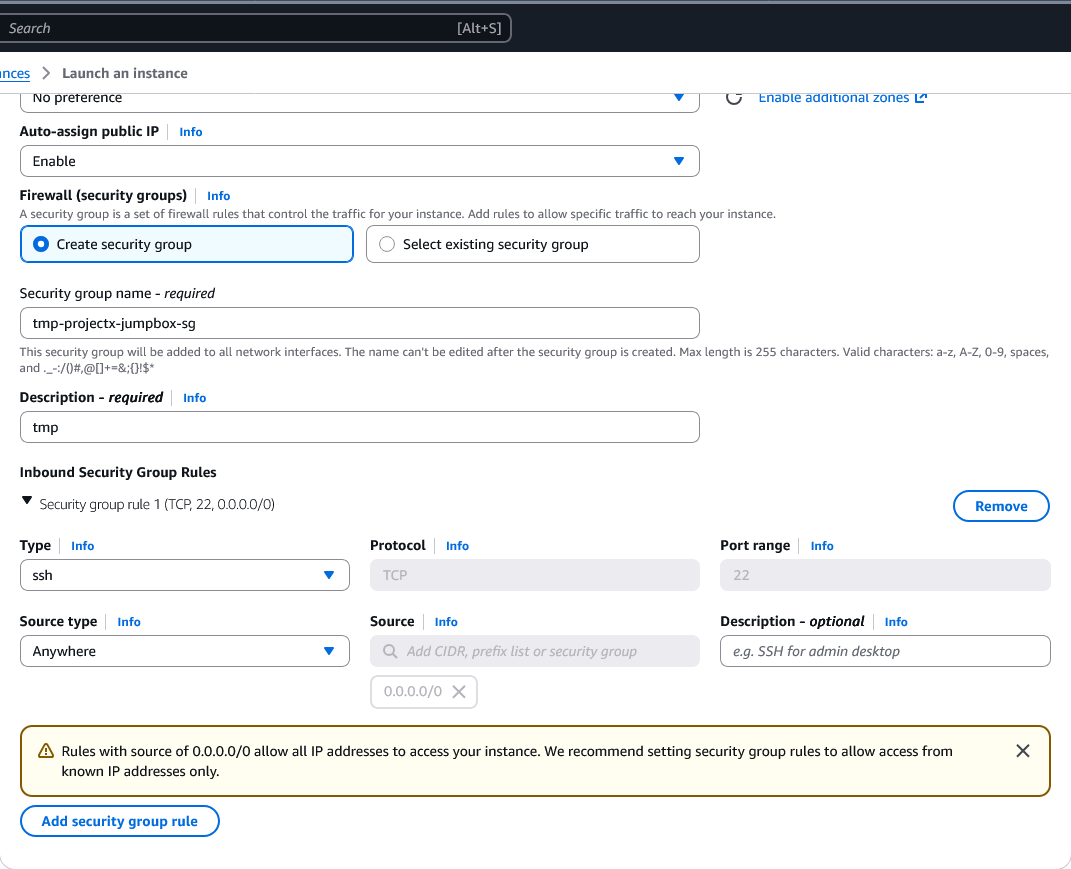

Configure Security Group:

Select the "Edit" button.

Security group name: tmp-projectx-jumpbox-sg
Inbound rules: Add SSH (port 22) from My IP

Leave all other settings as default.

Leave everything else default.

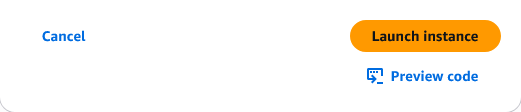

Select "Launch instance".

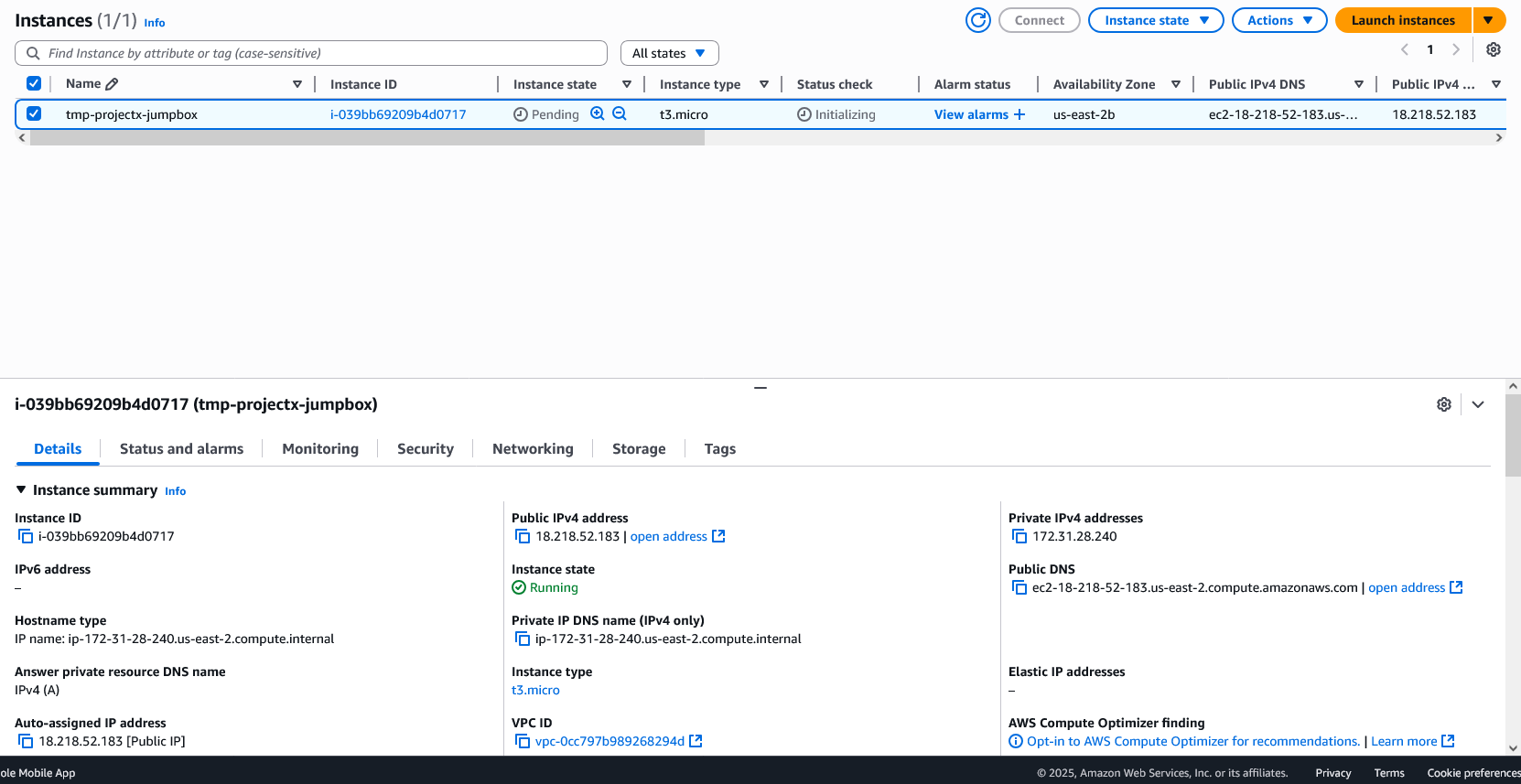

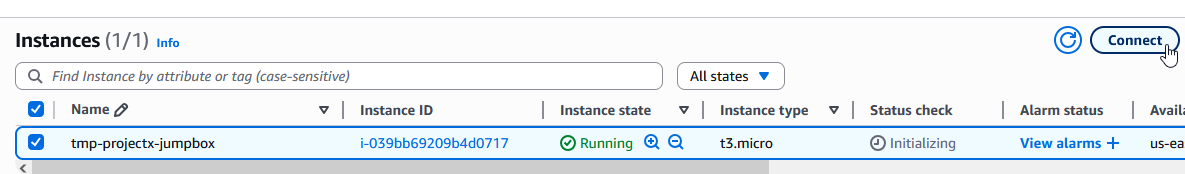

Wait for the instance to reach "Running" status and note the public IP address.

SSH¶

Open terminal or PowerShell.

Connect using your private key:

ssh -i ~/.ssh/My-Desktop-Key-Pair ubuntu@<public-ip-address>

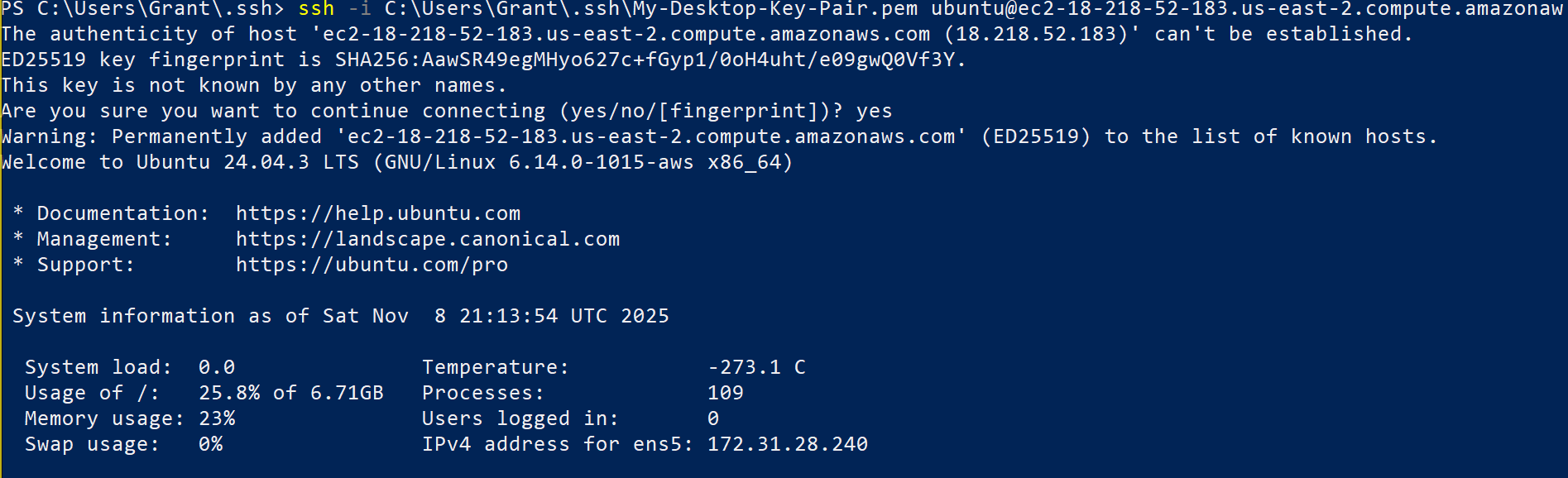

On Windows PowerShell:

ssh -i $env:USERPROFILE\.ssh\My-Desktop-Key-Pair ubuntu@<public-ip-address>

Replace <public-ip-address> with your instance's public IP.

👉 First connection will prompt you to accept the host fingerprint. Type yes and press Enter.

You should now be logged into your Ubuntu instance.

EC2 Instance Connect¶

In the EC2 Console, select your instance tmp-projectx-jumpbox.

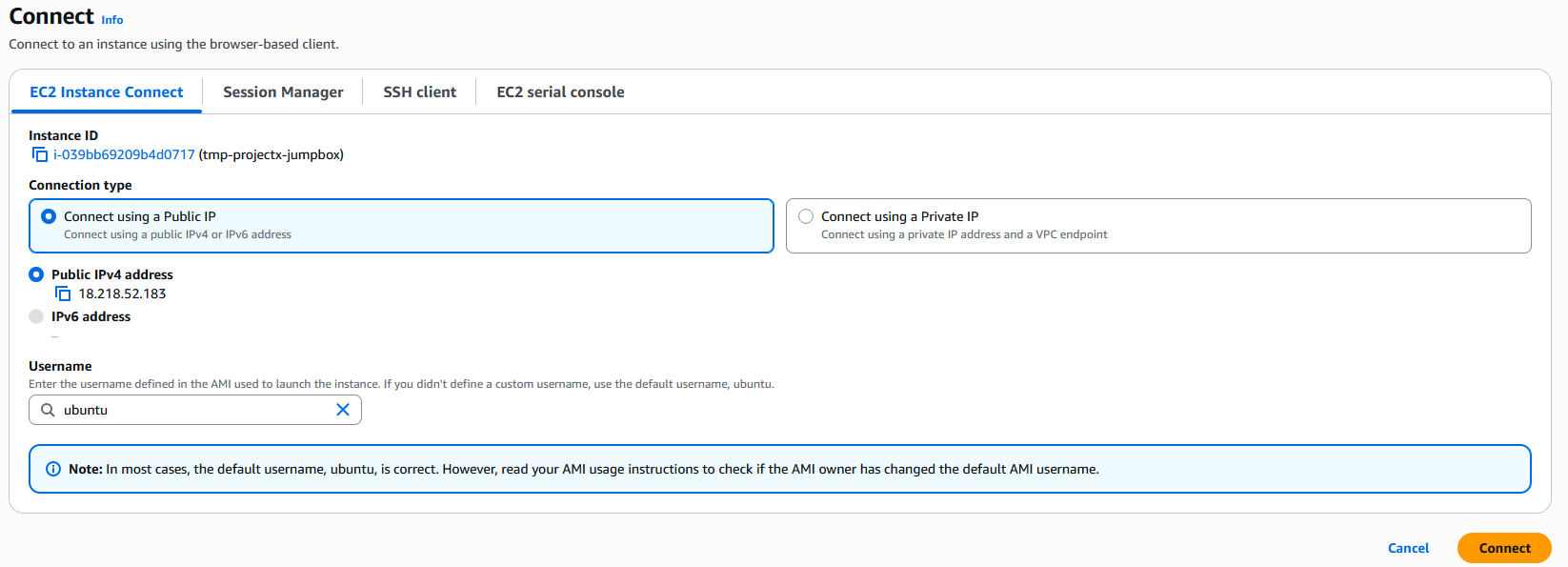

Select "Connect" ➔ "EC2 Instance Connect".

Select "Connect".

A browser-based terminal will open, providing immediate access without SSH keys or IP addresses.

CloudShell¶

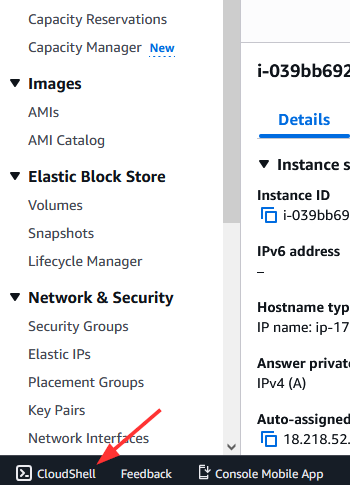

In the AWS Console, select the CloudShell icon (top navigation bar).

Wait for CloudShell to initialize.

Connect to your instance using SSH:

ssh -i ~/.ssh/My-Desktop-Key-Pair ubuntu@<public-ip-address>

👉 You may need to upload your private key to CloudShell first, or use EC2 Instance Connect from CloudShell.

Security Groups¶

Security Groups act as virtual firewalls controlling inbound and outbound traffic for your EC2 instances.

Key Concepts:

Inbound rules: Control incoming traffic to your instance
Outbound rules: Control outgoing traffic from your instance
Stateful: Responses to allowed inbound traffic are automatically allowed outbound
Default deny: All traffic is denied by default unless explicitly allowed

Current Configuration:

Your tmp-projectx-jumpbox-sg currently allows: - SSH (port 22) from all IP addresses.

Remove SSH¶

👉 Removing SSH access will lock us out of the instance unless we have an alternative method (SSM Session Manager).

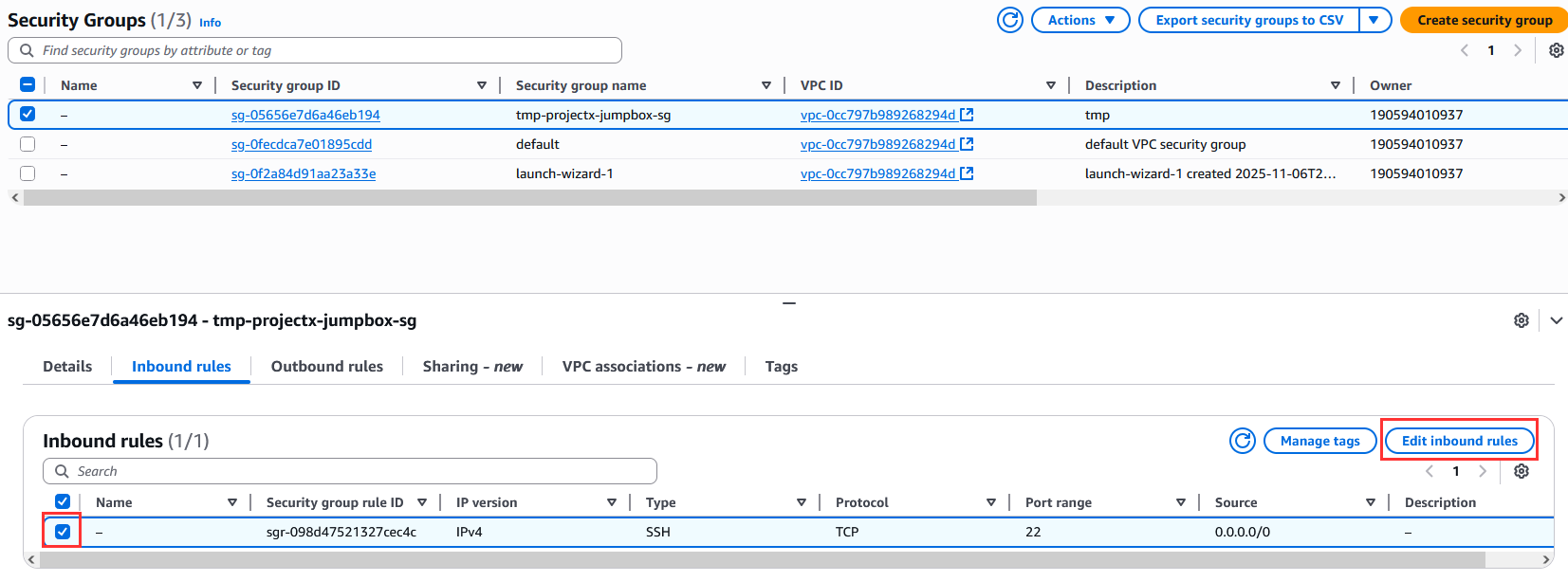

Navigate to EC2 ➔ Security Groups.

Select tmp-projectx-jumpbox-sg.

Select "Edit inbound rules".

Select "Delete" on the SSH rule.

Select "Save rules".

Your instance no longer accepts SSH connections from the internet.

SSM Manager¶

AWS Systems Manager (SSM) Session Manager provides secure, agent-based access to EC2 instances without opening inbound ports or managing SSH keys.

Benefits:

No SSH ports needed in Security Groups
No key management required
Encrypted sessions via AWS IAM
Audit logging of all sessions
Works through private networks

Prerequisites for SSM:

SSM Agent: Pre-installed on Amazon Linux 2, Ubuntu 16.04+, and Windows Server 2016+
IAM Role: Instance must have an IAM role with AmazonSSMManagedInstanceCore policy
Internet Access: Instance needs outbound HTTPS (443) to reach SSM endpoints

Connect via SSM:

In EC2 Console, select your instance ➔ "Connect" ➔ "Session Manager" ➔ "Connect".

A browser-based terminal opens, providing secure access without SSH.

👉 SSM Session Manager is the preferred method for accessing instances in production environments as it reduces the attack surface by eliminating the need for SSH access.

We will learn how to provision SSM console access once we create our own VPC and VPC endpoint.
